Consultix | Improving the testing and planning tools experience bybringing portability together with precision and accuracy
Founded in 2005, Consultix is a global telecom manufacturer of telecom test equipment for field applications.Consultix product lines cover the entire project life cycle end to end; from design and verification, installation testing & commissioning all the way to long-term maintenance, optimization, and monitoring solutions.
All over the world, Consultix innovative range of solutions and services help operators, network vendors, and system Integrators achieve ultimate design performance, fast project deliveries as well as low OPEX. Consultix specialises in next generation ultra-portable modulated and CW test transmitters, receivers, cable & antenna analysers, spectrum analysers and DAS monitoring solutions.
A few of the key field equipment is briefed below. For details and more information, you can contact us with your exact requirements and we will be happy to assist you choose the right equipment for your field requirements.
Sweep Testers / Cable & Antenna Analysers

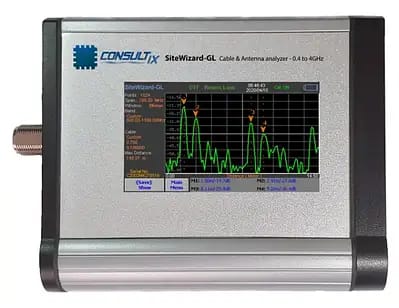

Cable & Antenna Analyser – SiteWizard™ – VSWR, DTF & Return Loss tests supporting from 100 MHz up to 3200 MHz with an option of having Spectrum Analyser built-in the same unit, making it more cost-effective and improving efficiency. There is an option of having all the goodness of SiteWizard™ combined with CW receiver in the form odDASMaster™. Cable & Antenna Analyser – SiteWizardGL™– VSWR, DTF & Return Loss tests supporting from 400 MHz to 4000 MHz. This new device is well suited for recent deployments ranging from 700 MHz to mid-band 5G.
Test Transmitters
CW Transmitters – CellWizard™ – Compact size, battery-operated transmitter supporting different frequency ranges from as low as 60 MHz and as high as 4200 MHz, up to 20dBm output power, with an option of up to simultaneous outputs.
CW and Modulated Transmitter – Illuminator™ – Compact size, a battery-operated transmitter capable to transmit CW from 200-6000 MHz frequency, also has options to transmit modulated signal for LTE and WCDMA, supports an output power up to 15dBm with battery operation and up to 40dBm on port 2 with AC powered option.
Test Receivers
A range of single port and dual port battery operated CW receivers i.e., CellWizard™, CellWizardMRX-Pro™ and industry-leading Pathfinder™ ranging from 150 MHz up to 3900 MHz are offered by Consultix. Connected with WalkView™software application they can scan from a maximum of 4 channels up to 12 channels simultaneously with a sample speed up to 550 samples per second.
Eagle-40™ is specially designed CW receiver for mmWave applications from 24 GHz to 40 GHz. Like Pathfinder™ and MRX-Pro™ it also conforms with 40-λ lee Criteria with ability to capture 550 samples per second and distance sampling with wheel trigger support.
Catalyst™ us a 40GHz downconverter setting new standards when handling mmWave signals and giving life and opening horizons of your existing sub 6GHz field equipment. All CW receivers can be connected with easy-to-use Consultix WalkView™ Windows PC and Android based software for both indoor and outdoor applications.
Ready to explore Consultix?
Contact enquiries@teleres.com.au for more information about products.
