VEGA | Specialised High Gain Antenna
Network Design & Optimization Platform
VEGA Antenna | Specialised Very High Gain Antenna Solution for targeted cellular coverage
Established in 2003, Comarcom Ltd has a deep understanding of both the cellular technology and cellular marketplace allowing it to offer a niche one-of-a-kind RAN planning and optimisation tool.
These antennas are a revolutionary coverage enhancement product. They are unique yet compatible with all cellular RAN frequencies including 4G LTE, 5G, 5G fixed wireless and legacy technologies.

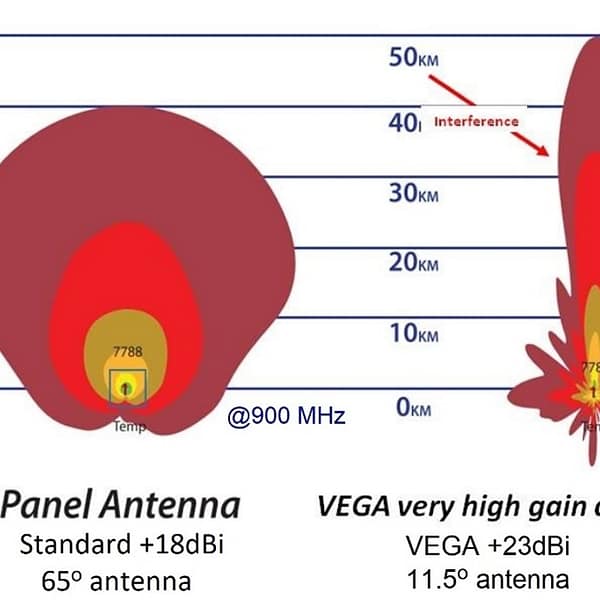

They concentrate your signal, (just like a spotlight) into a powerful, narrow focused spot beam providing high quality, reliable service where the customers actually need it and at distances up to 50% greater than the common high gain panel antennas.
With less power in the back and side lobes, these very narrow beam and high gain antenna enhances the coverage and improves interferences spatial filtration.
VEGA antennas do not compete with or replace common sector panel antennas. They provide the community of RAN network planners and optimizers with a new, unique tool especially designed for difficult cellular radio access networks scenarios, especially long range rural cellular coverage.
Salient use-cases and applications can be briefed as below
- Enhancement of BTS coverage (3G, LTE, 5G, fixed wireless) because of higher gain
- Improves cell enhancer solutions performance making it an ideal solution for regional areas and towns
- Ideal for long highways, bridges and rail track coverage because of narrow beamwidth and higher gains
- Narrow beam high gain dish antennas are best for GSM-R and LTE-R networks because of low interference compared to standard panel antennas
- Plays an important role in maritime and offshore coverage
- Increases coverage and reduces drop calls in remote high-rise buildings
- Low-cost churn reduction
- Improves QoS and ROI
- Low CapEx and OpEx compared to adding sites
Below is the brief information on various models, respective frequency range and gain. Contact us for more information and details of your requirements. Our team will be happy to assist with updated specifications and models.
| Antenna Model | Frequency Band | Gain [dBi] | -3dB Beam Width |
| CW-12-WB3 | 610-960 MHz | +18to +22.5 +/-0.5 | 14 to 10 +/-0.5 |

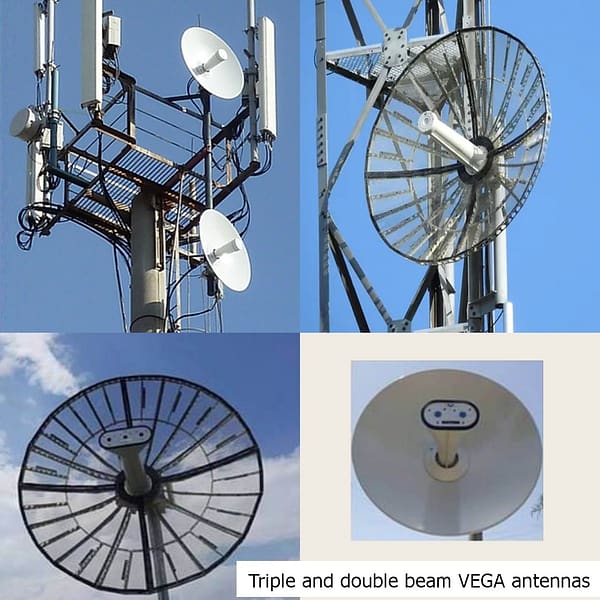

| CP-32-WB3 (Triple Beam) | 1710-2690 MHz | +27.5 to + 29 +/-0.5 | 5.2 to 4.5 +/-0.5 |
| CMP-22-WB3 (Dual Beam) | 1710-2690 MHz | +22 to + 25 +/-0.5 | 10.8 to 7.4 +/-0.5 |
| CMW-12-WB3 | 3300-3950 MHz | +23.7 to +26.3 +/- 0.5 | 6 to 5 +/-0.5° |
| CMP-12-WB3 | 1710-2690 MHz | +22.5 +/- 1 | 10.8 to 8.4 +/-1° |
| CP-12-WB3 | 1710-2690 MHz | + 27 to 28.3 +/-0.5 | 5.8 to 4.2 +/-1° |
| CC-12-WB3 | 690-960 MHz | +21 to 22.6 +/-0.75 | 13 to 10.5+/-1° |
CUSTOMER STORY
Vodafone NZ and 2 Degrees

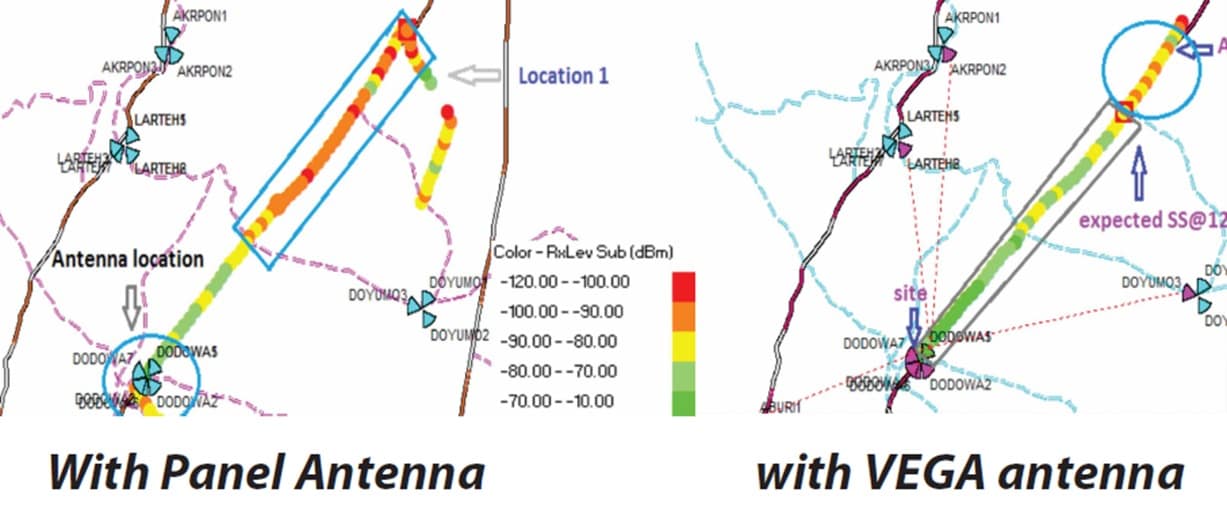

Our customers Vodafone NZ and 2 Degrees mobile have used VEGA Specialised High Gain Antennas to address locations with specialised or difficult radio access scenarios to provide quality mobile service to their customers.
